❓ What is effective depth?

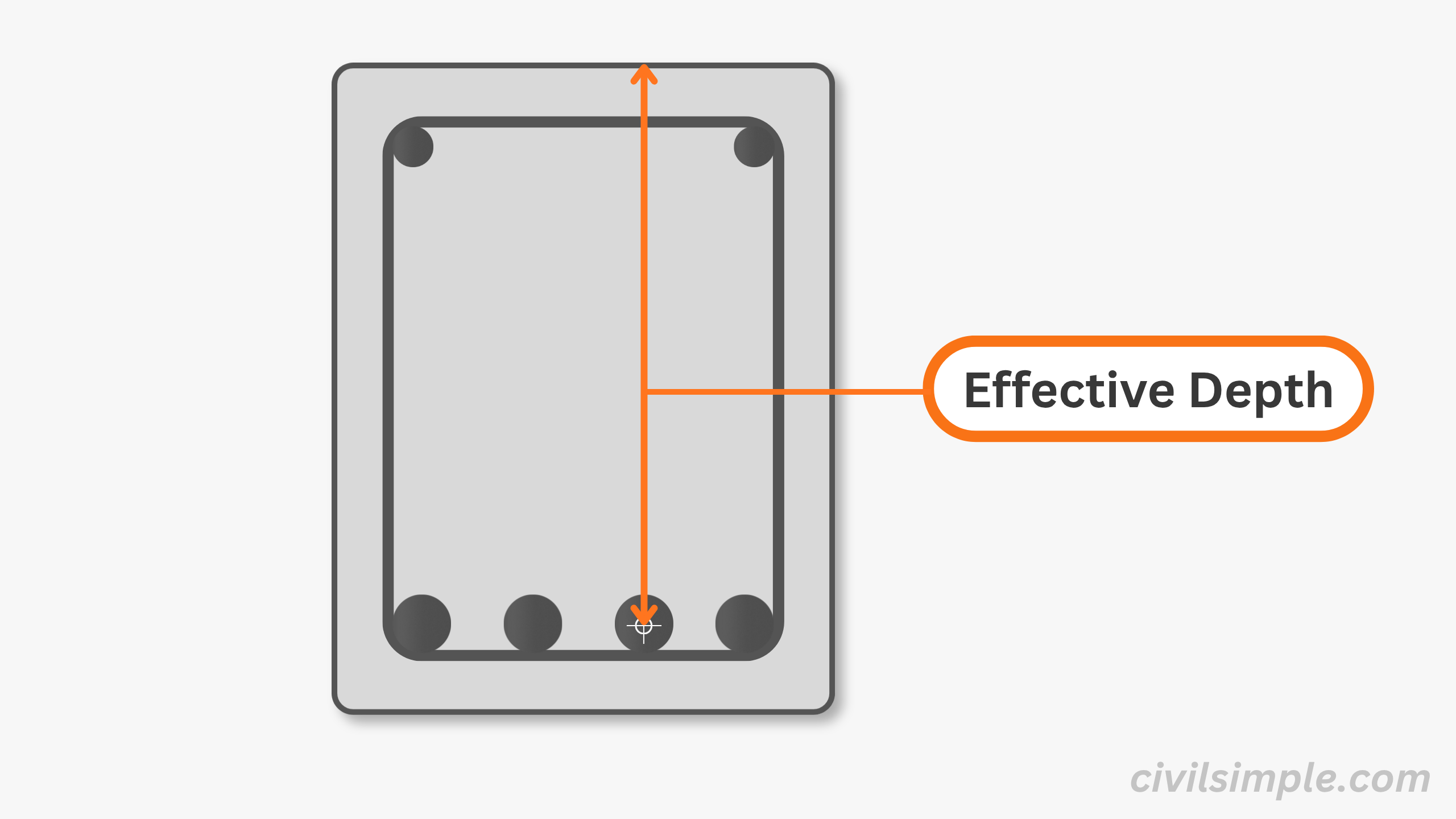

Effective Depth is the distance from outermost concrete from compression side to centroid of reinforcements at tension side. It is a major variable in the calculation of section capacity in structural design.

Shear links Tension rebars Effective Depth Reinforced Concrete Section

Common symbol in eurocode:

d

🤔 Why do we need effective depth in RC design?

  • Used for structural/technical calculations
  • Measured from compression face to the centroid of tension reinforcement
  • Excludes concrete cover and links, as concrete in tension is assumed to crack and not resist tension, with reinforcement providing tensile capacity of the section

🧩 Dependance

h = 450 mm Overall Depth c.c. = 40 mm Concrete Cover Ø12 + Ø16 / 2 = 20 mm Shear Link + centriod of tension bar d = 390 mm Effective Depth Shear links(Ø12) Tension Bar(Ø16)


1. Height of concrete section (h)

2. Diameter of tension reinforcements (øbar)

3. Diameter of shear links (ølink)

4. Concrete cover (c.c.)

🔢 Formula of effective depth

The common formula of effective depth is:

Effective Depth
d = h - Øreinforcement/2 - Ølink - c.c.

🧮 Application in design calculation

The calculation of effective depth is a first-principles concept widely used across design codes (e.g. Eurocode, ACI, BS) and is not specific to any single code.

Cross-section
h = 500 mm d = 450 mm
Effective depth calculator
d = h − c − ølink − øbar / 2
h =500 mm
c =30 mm
ølnk =10 mm
øbar =20 mm
Working
d = 500 − 30 − 10 − (20 ÷ 2) = 450 mm
Effective depth d = 50 mm less than h
450 mm

🚨 Consequence of using height (h) instead of effective depth (d)

It is important to use effective depth to calculate section capacity in design. If accidententially mis-use the overall depth, overestimation of capacity will occur and resulting in an unsafe design.

The following example illustrates the difference:

Wrong
Using overall depth h
Depth usedh = 500 mm
Lever arm z≈ 435 mm
As required965 mm²
Moment capacity MRd = 181 kNm
Overestimated by ~11% — unsafe design
Correct
Using effective depth d
Depth usedd = 450 mm
Lever arm z≈ 391 mm
As required1,072 mm²
Moment capacity MRd = 163 kNm

🤔 What if there are multiple layers of tension reinforcements?

When there are multiple layers of tension reinforcement, the effective depth is calculated using the centroid of all tensile bars, based on their area and position.

The size and arrangement of rebars affect the centroid location of the reinforcement group.

On site, spacers are used to hold rebars in position, typically arranged at 90° to maintain spacing between layers.

Bundle Bars for multiple layers

With Spacers for multiple layers


Calculating the centroid for multiple layers can be tedious — use ---the simple calculator--- in this link to find the effective depth quickly.

If you are unsure whether your section capacity is sufficient, feel free to try our service — we provide professional, ready-to-use PDF reports in just a few clicks. 🚀

📝Summary & Key Takeaways

  1. Effective Depth is an important concept in RC Design, which consider as the "real depth" of section in term of structural performance.
  2. It represents the distance from outermost concrete from compression side to center of the tension side.
  3. Effect Depth of a section is depending on height of section, shear links, concrete cover and centroid of tension rebars.
  4. Misuse of effective depth and height of section in calculation will result in over-estimate the concrete section, which will lead to danger.
